The "Assets" page in Open Raven shows you your:

  1. Asset List
  2. Asset Group

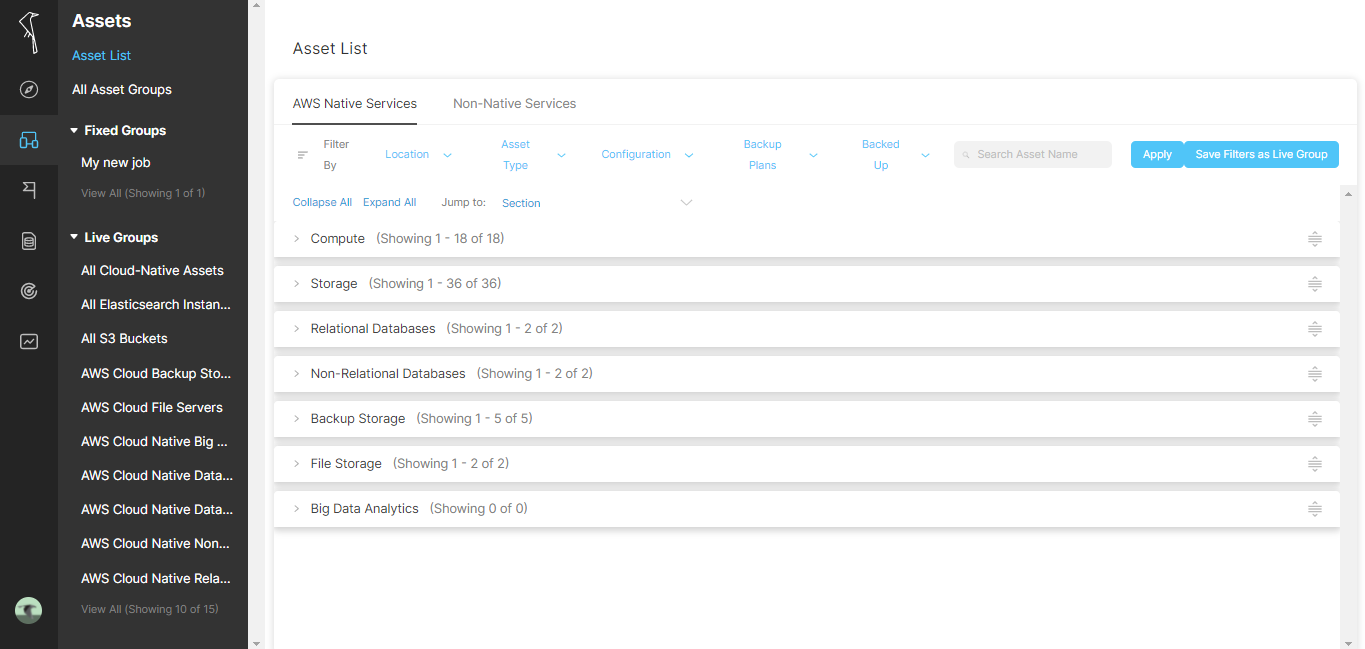

Asset List is where you can browse, search, and filter your Assets. As in "Maps," here you can also see which Assets are part of a Backup Plan as well as which Assets are backed up and which Assets are not backed up.

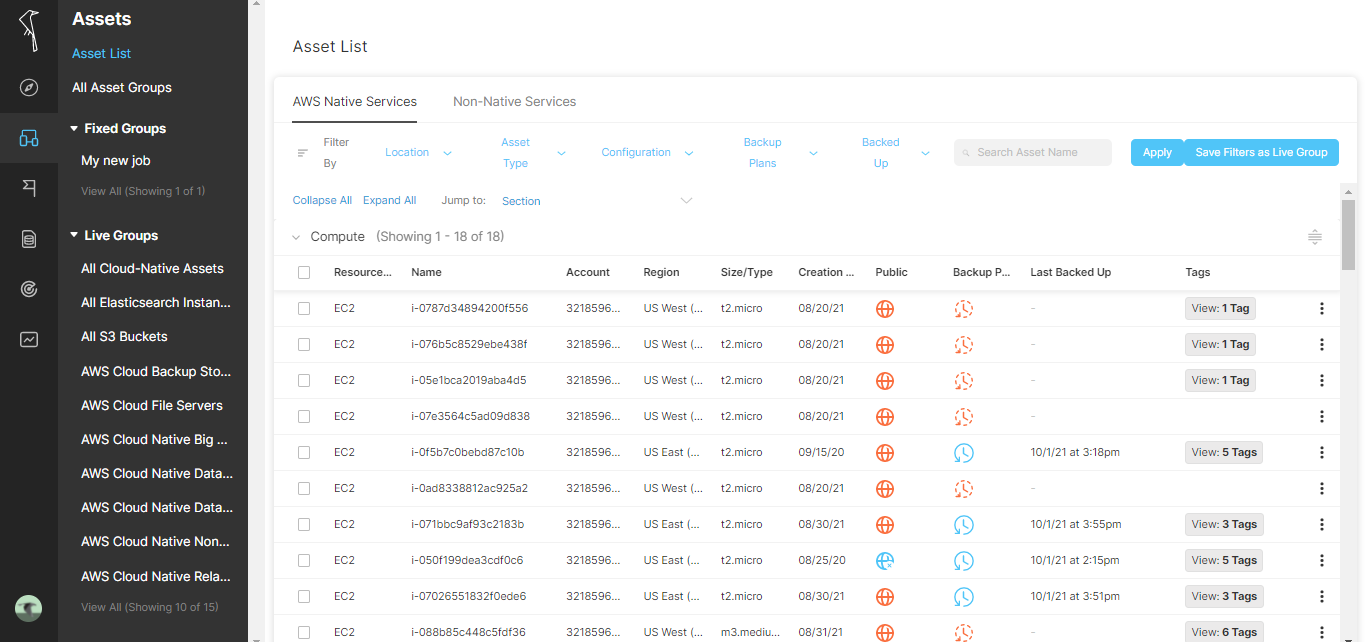

The grey backup icon means that the asset is part of a Backup Plan but has not been backed up.

The blue backup icon means that the Asset is backed up. Hovering over the icon will show you which Backup Plans the Asset falls under. You can also see when the Asset was last backed up.

The red backup icon means that the Asset is not part of a Backup Plan.

The Asset List displays both AWS native and non-native services. Native services are grouped by:

  • Compute
  • Storage
  • Relational Databases
  • Non-Relational Databases
  • Backup Storage
  • File Storage
  • Big Data Analytics.

Non-native services are grouped by:

  • Compute
  • Relational Databases
  • Non-Relational Databases
  • File Storage
  • Big Data Analytics.

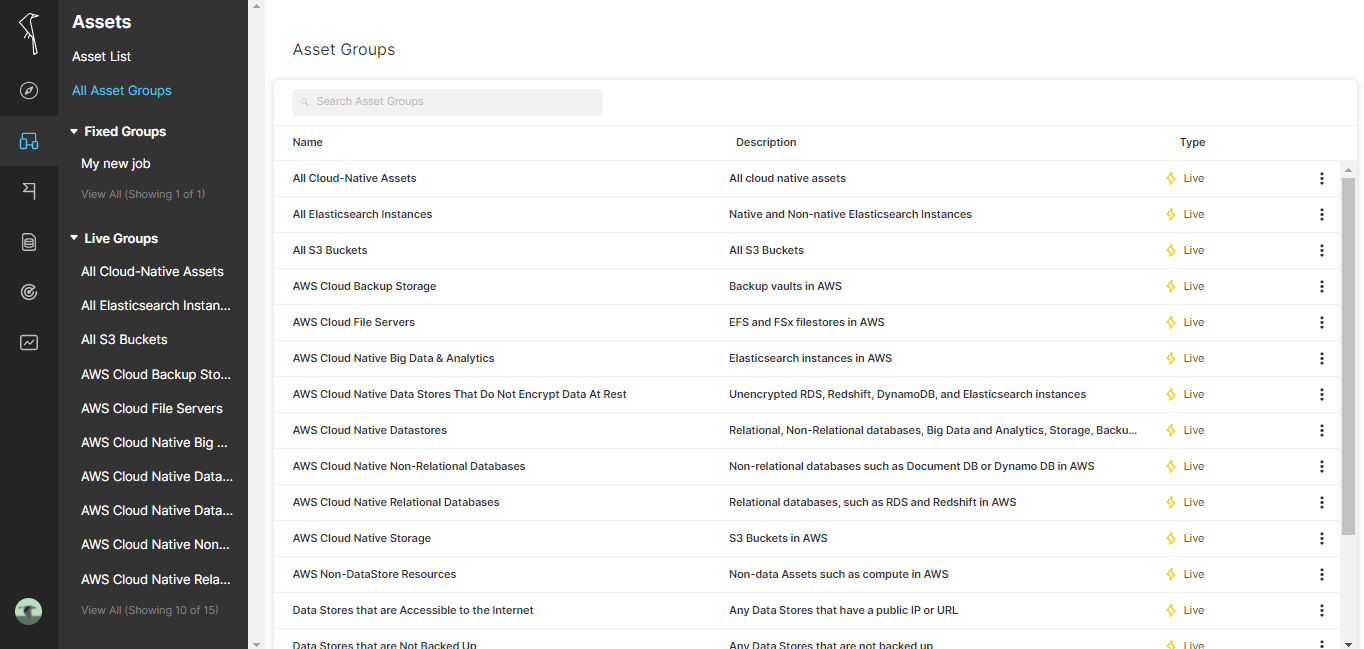

Asset Group is the go-to place if you want to cluster your Assets into groups.
